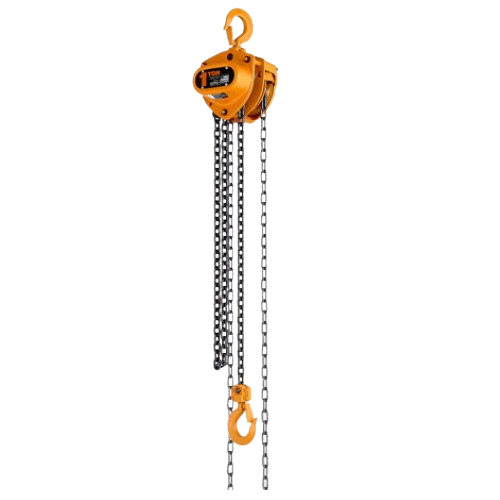

Hand Chain Hoists – KITO CB Series

  • Lighter, smaller, and more efficient, these hoists are invaluable for lifting applications.
  • A high-class load chain with a breaking strength of 1000 N/㎟ (100 kgf/㎟) is key to reliable and safe operation.
  • The dry-type braking mechanism provides excellent performance.
  • Shock-resistant gear case and hand wheel cover
  • Double-pawl spring mechanism for extra reliability

Download Brochure


Send Enquiry

Description

DIMENSIONS DATA KITO CB Series Hand Chain Hoists

Dimension KITO CB Series



Code Capacity (t) Headroom: C a b d
CB005 0.5 285 158 161 2500
CB010 1 295 162
CB015 1.5 350 171 182
CB020 2 375 182 202 3000
CB030 3 510 171 235 3100



Specification Data of KITO CB Series Hand Chain Hoists
Code Capacity
(t)		 Standard
Lift
(m)		 Hand Chain
Folded
Length
(m)		 Load Chain
Dia. ×
Chain Fall
(mm)）		 Mass
(Net Weight)
(kg)
CB005 0.5 2.5 2.5 5.0×1 10
CB010 1 6.3×1 11.5
CB015 1.6 7.1×1 14.5
CB020 2 3 3 8.0×1 20
CB030 3.2 7.1×2 24
  • Other capacities are available upon request.
  • Any lift of chain is available upon request.
  • As KITO chains are heat-treated, splicing of the load chain is prohibited.
  • When ordering, specify the lifting height.
  • Chain falls vary depending on the capacity of each hoist.
