Description

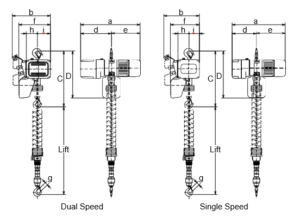

DIMENSIONS DATA KITO CDER2 Cylindrical Control Dual – Single Speed
| Capacity (t) | Product Code | Headroom C | D | a (MFC) | b (MFC) | d (MFC) | e | f (MFC) | g | h | i (MFC) |
| 125kg | ER2C001IH | 535(564) | 345 | 276(305) | 284 | 117 | |||||
| 250kg | ER2C003IS | ||||||||||
| 125kg | ER2C001HD | 1010 | 430 | 259 | 27 | 99 | |||||
| 250kg | ER2C003SD | ||||||||||
| 125kg | ER2C001H | 478(564) | 321(345) | 219(305) | 260(284) | 93(117) | |||||
| 250kg | ER2C003S |
SPECIFICATION DATA KITO CDER2 Cylindrical Control Dual/Single Speed
| Capacity (t) | Product Code | Hoist Body | Standard Lift (m) | Lifting Motor | Lifting Speed (m/min)* | Load Chain | Classification ISO/FEM/ASME | Test Load (kg) | Net Weight (kg) | Additional Weight per 1m Lift (kg) | |||||
| 50/60Hz | |||||||||||||||
| Output (kW) | Rating (%ED) | Diameter Chain (mm) x Falls | |||||||||||||
| High | Low | ||||||||||||||
|
Dual | 125kg | ER2C001IH |
B |
1.8 |
0.56 |
40/20 | Preset | 16.6 | 2.8 |
4.3 x 1 |
M6/3m/H4 | 156 |
28 |
0.42 | |
| Adjustable | 1.4 | ||||||||||||||
| 250kg | ER2C003IS | Preset | 10.8 | 1.8 | (M5/2m/H4) | 313 | |||||||||
| Adjustable | 0.9 | ||||||||||||||
| Capacity (t) | Product Code | Hoist Body | Standard Lift (m) | Lifting Motor | Lifting Speed (m/min) | Load Chain | Classification ISO/FEM/ASME | Test Load (kg) | Net Weight (kg) | Additional Weight per 1m Lift (kg) | ||||
| Output (kW) | Rating (%ED) | 50Hz | Diameter Chain (mm) x Falls | |||||||||||
| 125kg | ER2C001HD | 14.2/3.5 | 156 | |||||||||||
| Dual | 250kg | ER2C003SD | B | 1.8 | 0.5/0.13 | 40/20 | 7.2/1.8 | 4.3 x 1 | 313 | 33 | 0.42 | |||
500 V
| Capacity (t) | Product Code | Hoist Body | Standard Lift (m) | Lifting Motor | Lifting Speed (m/min) | |||
| Output (kW) | Rating (%ED) | 50Hz | 60Hz | |||||
| 125kg | ER2C001H | 14.1 | 16.9 | |||||
| Single | 250kg | ER2C003S | B | 1.8 | 0.56 | 60 | 9.1 | 10.9 |
500 V
| Capacity (t) | Product Code | Load Chain | Classification ISO/FEM/ASME | Test Load (kg) | Net Weight (kg) | Additional Weight per 1m Lift (kg) | |
| Diameter Chain (mm) x Falls | |||||||
| 125kg | ER2C001H | 156 | |||||
| Single | 250kg | ER2C003S | 4.3 x 1 | 313 | 29 | 0.42 | |
