Large Capacity ER2 Hook Suspension Type

KITO ER2 Large Capacity

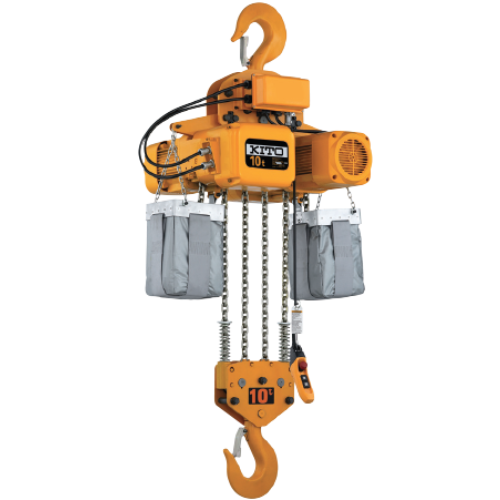

Electric Chain Hoist KITO ER2 Large Capacity With Hook Suspension

Standard length of power supply cable is ten meters.
Optional length of lift, push button cord and power supply cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume.

Download Brochure

Description

Description

DIMENSIONS DATA KITO ER2 Large Capacity

KITO ER2 Large Capacity

Capacity (t)	Product Code	Headroom C	D	a (MFC)	b	w	g
10	ER2-100S	1370	1210		849	956	80
15	ER2-150S	1595	1520	798 (853)	1022	1129	86
20	ER2-200S	1710	1600		1198	1305	102

SPECIFICATION DATA Capacity

Capacity (t)	Product Code	Hoist Body	Standard Lift (m)	Push Button Cord L (m)	Lifting Motor		Lifting Speed (m/min)
Capacity (t)	Product Code	Hoist Body	Standard Lift (m)	Push Button Cord L (m)	Output (kW)	Rating (%ED)	50Hz	60Hz
10	ER2-100S			3.4			2.9	3.5
15	ER2-150S	F	3		3.5×2	60	1.9	2.3
20	ER2-200S			3.7			1.4	1.7

Capacity (t)	Product Code	Load Chain	Classiﬁcation ISO/FEM/ASME	Test Load (t)	Net Weight (kg)	Additional Weight per 1m Lift (kg)
Capacity (t)	Product Code	Diameter Chain (mm) x Falls	Classiﬁcation ISO/FEM/ASME	Test Load (t)	Net Weight (kg)	Additional Weight per 1m Lift (kg)
10	ER2-100S	11.2 x 4		12.5	303	11
15	ER2-150S	11.2 x 6	M4/1Am/H4	18.8	404	17
20	ER2-200S	11.2 x 8		25	476	22
