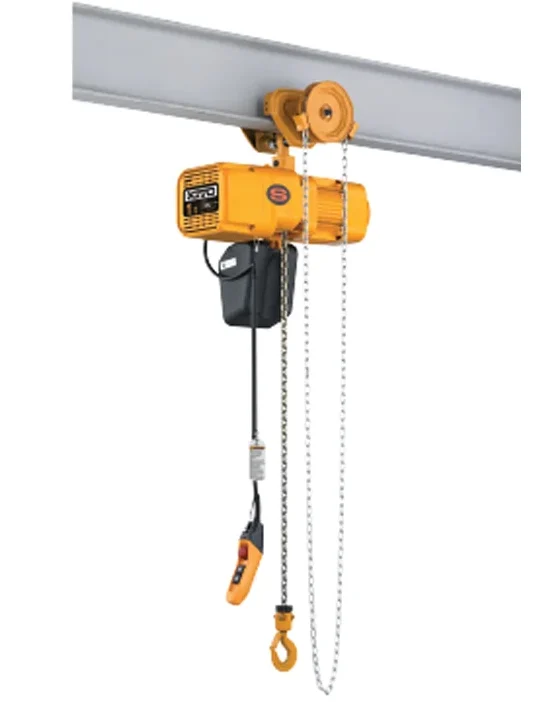

Electric Chain Hoist KITO ER2SG Dual Speed 500V Pole Change With Geared Trolley

Ten meters of power supply cable as standard accompanies.
Optional length of lift, push button cord and power supply cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers are available as option as shown in Section of ‘Chain Containers” if your lift is more than capacity of the standard container volume.

Download Brochure

Description

Description

DIMENSIONS DATA KITO ER2SG Dual Speed 500V Pole Change

KITO ER2SG Dual Speed 500V

Capacity (t)	Product Code	Headroom C	D	a	b	e	g	h	i	j
125kg	ER2SG001HD
250kg	ER2SG003SD	415	490
500kg	ER2SG005LD	435	550	345	236	152	27	106	71	28
500kg	ER2SG005SD	435	550	345	236	152	27	106	71	28
1	ER2SG010LD	470	590				31
1	ER2SG010SD	470	590				31
1.5	ER2SG015SD	570					34
2	ER2SG020LD	635	690	385	280	154	39	127	85	34
2	ER2SG020SD	650	690	385	280	154	39	127	85	34
2.5	ER2SG025SD	680	890
3	ER2SG030SD	780		398	324	157	44	148	100	36
5	ER2SG050SD	840	910	401	400	156	47	169	118	46

Capacity (t)	Product Code	k	k’	m	n	o	p	q	r	t	u
125kg	ER2SG001HD
250kg	ER2SG003SD
500kg	ER2SG005LD	95	107	56	112	50		69	50	25
500kg	ER2SG005SD	95	107	56	112	50		69	50	25
1	ER2SG010LD
1	ER2SG010SD
1.5	ER2SG015SD						10				183
2	ER2SG020LD	112	109	71	131	63		83	62	32
2	ER2SG020SD	112	109	71	131	63		83	62	32
2.5	ER2SG025SD
3	ER2SG030SD	134	115	80	152	74		102	68	36
5	ER2SG050SD	144	131	81	178	70		104	88	54

SPECIFICATION DATA KITO ER2SG Dual Speed 500V Pole Change

Capacity (t)	Product Code	ER2
		Hoist Body	Standard Lift (m)	Push Button Cord L (m)	Lifting Motor		Lifting Speed (m/min)	Load Chain	Classiﬁ- cation ISO/FEM /ASME
					Output (kW)	Rating (%ED)	Lifting Speed (m/min)	Diameter x Chain (mm) Falls
					Output (kW)	Rating (%ED)	50Hz	Diameter x Chain (mm) Falls
125kg	ER2SG001HD						14.2/3.5
250kg	ER2SG003SD	B			0.5/0.13		7.2/1.8	4.3 x 1
500kg	ER2SG005LD	C					3.6/0.9	6 x 1	M5/2m /H4
500kg	ER2SG005SD	C					7.1/1.8	6 x 1	M5/2m /H4
1	ER2SG010LD	D		2.5	0.9/0.23		3.5/0.9	7.7 x 1
1	ER2SG010SD	D		2.5			7.2/1.7	7.7 x 1
1.5	ER2SG015SD		3		1.8/0.45	40/20	4.8/1.2
2	ER2SG020LD	E					3.7/0.9	10.2 x 1
2	ER2SG020SD	E					6.9/1.6	10.2 x 1
2.5	ER2SG025SD	F					5.5/1.3	11.2 x 1	M4/1Am /H4
3	ER2SG030SD	E			3.5/0.88		4.4/1.0	10.2 x 2
5	ER2SG050SD	F		2.8			2.8/0.6	11.2 x 2

Capacity (t)	Product Code	TSG					Test Load (t)	Net Weight (kg)	Additional Weight per 1m Lift (kg)
		Folded Hand Chain Length E (m)	Flange Width B (mm)			Min. Radius Curve (mm)
			Standard	Option
				W20 (203mm)	W30 (305mm)
125kg	ER2SG001HD						156kg
250kg	ER2SG003SD						313kg	44	1.4
500kg	ER2SG005LD		58 to 127	128 to 203	204 to 305	1300	625kg	52	1.7
	ER2SG005SD							56
1	ER2SG010LD	2.8					1.25	68	2.3
	ER2SG010SD							70
1.5	ER2SG015SD						1.88	91
2	ER2SG020LD		82 to 153		154 to 305	1500	2.5	93	3.2
	ER2SG020SD							115
2.5	ER2SG025SD			–			3.13	136	3.7
3	ER2SG030SD					1700	3.75	140	5.6
5	ER2SG050SD	3.3	100 to 178		179 to 305	2300	6.25	190	6.5
