Description

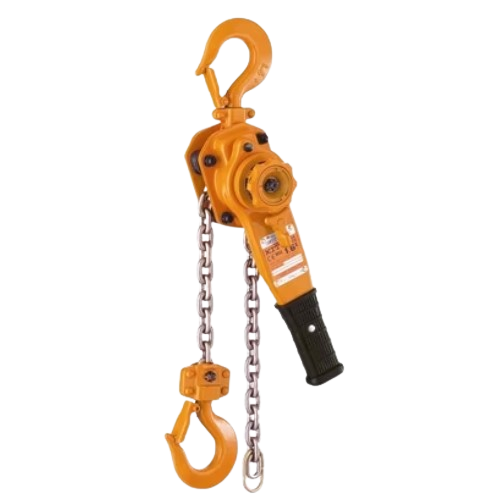

DIMENSIONS DATA ITO LB Series Lever Hoist
| Code | a | b | C | D | e |
|---|---|---|---|---|---|
| LB008 | 144 | 119 | 280 | 245 | 97 |
| LB010 | 144 | 119 | 300 | 245 | 97 |
| LB016 | 159 | 126 | 335 | 265 | 100 |
| LB025 | 173 | 150 | 375 | 265 | 102 |
| LB032 | 190 | 159 | 395 | 415 | 112 |
Specification Data of KITO LB Series Lever Hoist
| Code | Capacity (t) | Standard Lift (m) | Hand-pull to Lift Full Load (N) [kg] | Load Chain Dia × Chain Fall (mm) | Mass (Net Weight)*1 (kg) |
|---|---|---|---|---|---|
| LB008 | 0.8 | 1.5 | 284[29] | 5.6×1 | 5.7 |
| LB010 | 1 | 1.5 | 353[36] | 5.6×1 | 5.9 |
| LB016 | 1.6 | 1.5 | 333*2 [34] | 7.1×1 | 8 |
| LB025 | 2.5 | 1.5 | 363*2 [37] | 8.8×1 | 11.2 |
| LB032 | 3.2 | 1.5 | 363*2 [37] | 10×1 | 15 |
The load-lifting height can be set according to the user’s application. However, no addition to the chain to increase the length is possible as KITO chains are heat treated. When ordering, specify the length of chain in advance or consult with KITO and KITO’s global partners.
*1 The mass (Net Weight) is for the standard load-lifting height.
*2 Does not accord with EN13157
