KITO LX Series

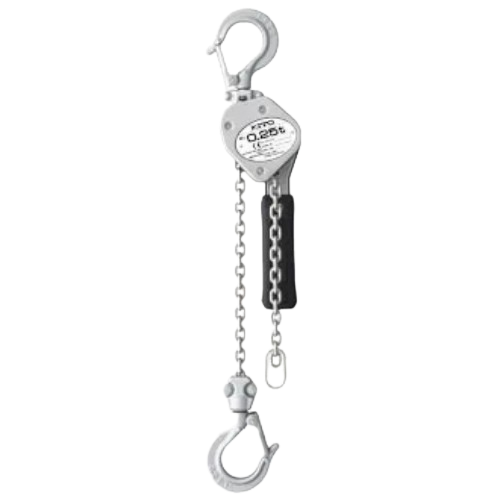

Lever Hoist – KITO LX Series

Smaller, lighter, stronger
Prioritizing safety, operability, and ruggedness so that the LB series performs well under the toughest field conditions
Designed for all applications in professional fields such as transportation, bridges, general construction, civil engineering, shipbuilding, and forestry.
KITO original free chain adjusting mechanism

Description

Dimension Kito LX series Lever Hoist

Code	a	b	C*	D	e
LX003	90.5	73.5	205	150	62
LX005	102	93	246	180	68

Code	Capacity (t)	Standard Lift (m)	Hand-pull to Lift Full Load (N) [kg]	Load Chain Dia. × Chain Fall (mm)	Mass (Net Weight) (kg)*
LX003	250 [0.25]	1	200[20]	3.2×1	1.6
LX005	500 [0.5]	1.2	310[31]	4.3×1	2.6

* The Mass (net weight) is for the standard load-lifting height.
